CNC Lathe

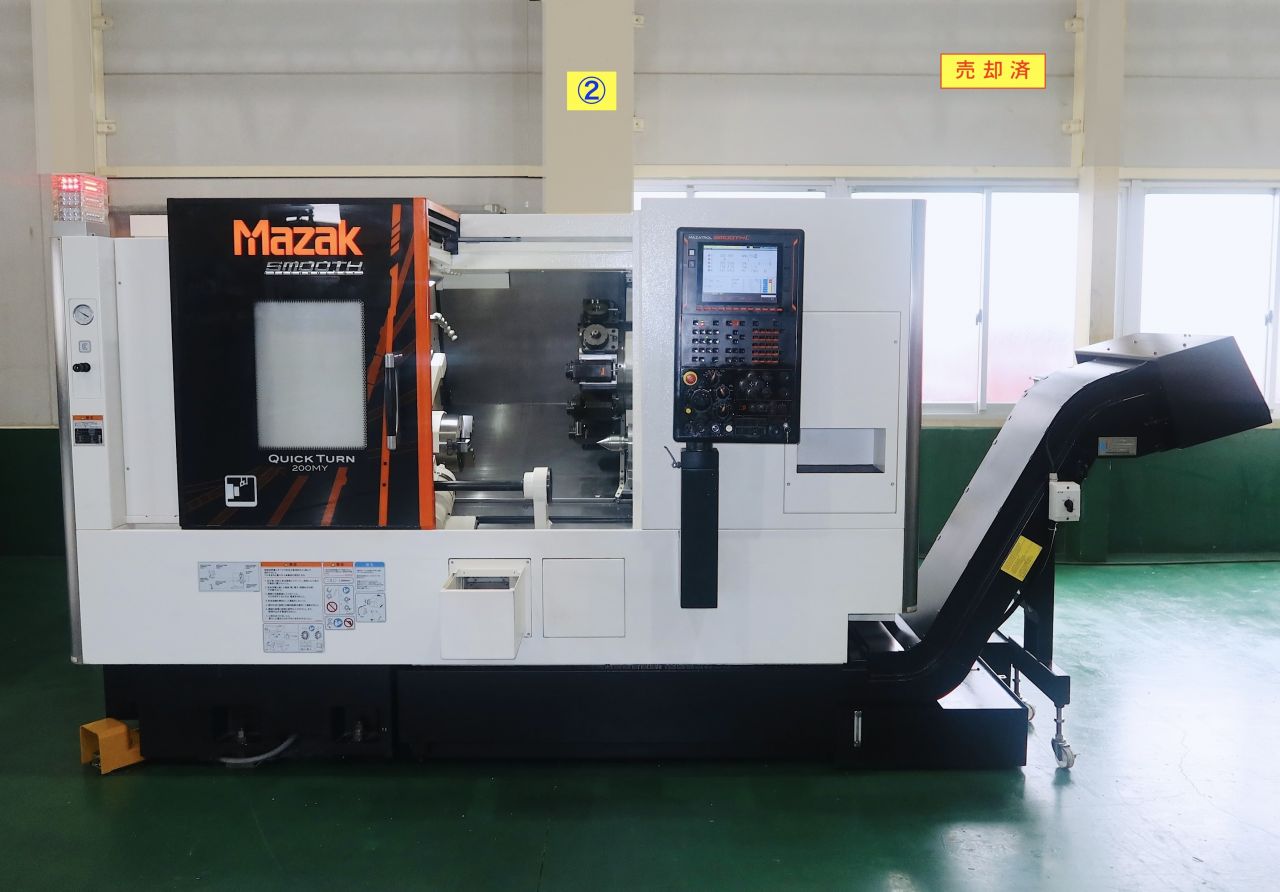

Manufacturer MAZAK Model QT-200(MY)-C500 Year 2019
Specification 制御：MAZATROL smooTHC
チャック: 8”中空(北川B-208)、 刃物台(VDI方式): V12
最大スイング:φ695、心間: 500
最大加工径x加工長: φ380x500

移動量: XZY: 234x625x100
主軸端面と刃物台断面距離:710

主軸回転: 5000rpm、 貫通穴:φ76

C軸制御:0.0001°割出、 Y軸制御

ミーリング回転：5000rpm
・自動ツールアイ　　 ・ミル軸同期タップ
・NC テールストック　・チップコンベア付き
・移設検知あり
・VDIミーリングホルダ多数付属(写真参照)
＊ 記載内容と現品に相違ある場合は、現品優先とさせて頂きます。
詳細はこちら

CNC Lathe

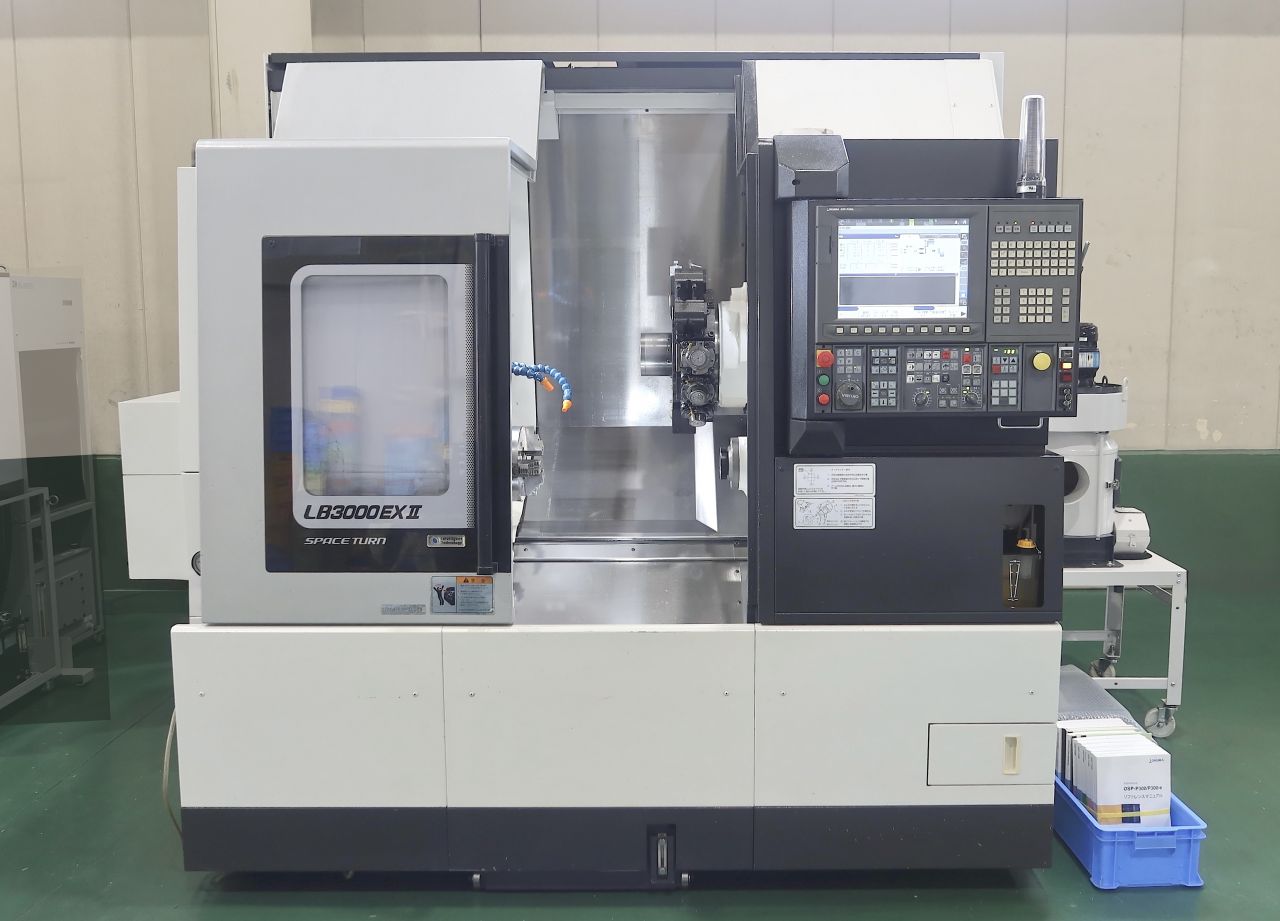

Manufacturer OKUMA Model LB3000EXⅡ(M)C Year 2016
Specification Control：OSP-P300L (Interactive)
Chuck: 8”Hollow (Kitagawa B-208)、NCTurret: V12
Swing over bed: φ580、Distance between center : 520
Max.turning dia.× Lenth: φ340×500
Spindle speed：5000rpm、Spindle bore: φ80
Milling spindle speed：6000rpm、C-Axis: 0.001°
Travel：ZXC：565x260x360°
・NC Tailstock　　・Tool setter(M)
・Door interlocking
・Chip-conveyor&chip bucket
詳細はこちら

CNC Lathe

Manufacturer OKUMA Model LB4000EXⅡ(MY)-C1500 Year 2022
Specification 《 Hours of operation: 400hrs.》
Control：OSP-P300LA (Interactive)
Chuck: 15”Hollow(Kitagawa B-215A)、NC Turret:V12
Swing over bed:φ670
Distance between center：1520
Max.Turning Dia.×Length：φ430×1500
Spindle speed：3000min、 Spindle bore: φ112
Milling spindle speed: 6000min
Travel:XZYC: 300x1590x140(±70)x360°(0.001°)
Travel of Tailstock：1530
・Tailstock sleeve extension：80
・Tool pre-setter(Manual)　
・Touch sensor(Renishaw RLP40)
・Absolute scale (X+Z+Ys axis)
・Mist collector can be installed
・Steady rest(φ20-150)
・Chip-conveyor
・Some milling&cutting holders are included (see photo)
詳細はこちら

CNC Lathe

Manufacturer OKUMA Model LB4000EXⅡ(M)-C2000 Year 2014
Specification Control：OSP-P300L(Interactive)
Chuck: 10”Hollow (Kitagawa BB-210A)、 NC Turret: V12
Swing over bed: φ670
Distance between center：2170
Max.Turning Dia.×Length：φ430×2150
Spindle speed：4200rpm、Spindle bore: φ91
Milling speed: 6000rpm、
Travel:ZXC: 2240x300x360°(Indexing:0.001°)
Travel of Tail stock：2180
・NC Tail stock　・Tool pre-setter(Manual)　
・Hydraulic steady rest
・Chip-conveyor
・Some milling holders are included (see photo)
詳細はこちら

CNC Lathe

Manufacturer MORI SEIKI Model NL2500/700 Year 2004
Specification Control：MSX-850Ⅲ (MAPPSⅡ)
Chuck: 10”Solid (Kitagawa N-10)、Turret: V12
Swing over bed: φ923、
Distance between center：700
Max.turning Dia.×Length：φ356×700
Spindle speed：4000rpm、　Spindle bore: φ91
Travel：ZX：795x260
Travel of tailstock：734
・Tailstock　・Tool pre-setter(Manual)
・Chip-conveyor
詳細はこちら

CNC Multi-tasking machine
RESERVED

Manufacturer MORI SEIKI Model NT4300DCG/1500SZ Year 2006
Specification Control：MSX-701Ⅲ(MAPPSⅢ)
Max.Workpiece Swing:φ730
Distance between Spindle Nose:1862
Max.Turning Dia.: Tool-spindle:φ660 / Turret:φ350
Max.Turning Dia.：1500
Travel(Tool-spindle Head):XYZB：750x ±210x1650x ±120
Travel(Turret)：XZ:195x1525、(Turret:V10)
Travel(Spindle 2) : 1610
Spindle1/Spindle2: 12in Hollow、3000rpm, C-Axis:0.0001°Indexing
Tool-Spindle: 12,000rpm, B-Axis:0.0001°Indexing、Capto C6, ATC100
・B-Axis Scale feedback
・Tool-Spindle Through-spindle coolant(3.5Mpa.)
・ In-machine measurement device (Tool-spindle/RenishawMP700)
・In-machine Tool presetter(Manual)/(Spindle1/Spindle2)
・Mist collector
・Chip-conveyor(Hinge + scraper + drum filter)
・Many tooling included
詳細はこちら

CNC Multi-tasking machine

Manufacturer OKUMA Model MULTUS B300 Year 2006
Specification Control：OSP-P200L(Interactive)
Chuck: 10” Hollow (Kitagawa B-210A6)

Main spindle: 4200rpm

Max.Maching Dia.×Length：φ630×900

Travel：ZXYCB：930x580x160x360° x210°
W-Axis(Tail stock)：667

Milling spindle: 6,000rpm、 HSK-A63、 ATC40

B-Axis: 0.001°Indexing、C-Axis: 0.001°

・M-spindle through coolant

・NC tail stock ・Tool setter
・Steady rest(φ20-150)
・Chip-conveyor
詳細はこちら

CNC Multi-tasking machine

Manufacturer OKUMA Model MULTUS B300 Year 2006
Specification Control：OSP-P200L(No Interactive)
Chuck: 12” Hollow (Kitagawa BB212)

Main spindle: 3500rpm

Max.Maching Dia.×Length：φ630×900

Travel：ZXYCB：930x580x160x360° x210°
W-Axis(tail stock)：667

Milling spindle: 6,000rpm、 HSK-A63、 ATC40

B-Axis: 0.001°Indexing、　C-Axis: 0.001°

・M-spindle through coolant
 ・NC tail stock
・Tool setter ・Chip-conveyor
詳細はこちら

CNC Multi-tasking machine

Manufacturer MORI SEIKI Model NL1500SY/500 Year 2012
Specification Control：M-720BM (MAPPS 4)
Chuck: 6”Hollow (Kitagawa BB206/B-206)
Swing over bed:φ923.8
Distance between two spindles: 830
Max.Dia. x Length:φ386×515、Turret：V12
Both spindles speed: 6,000rpm、 0.001°Indexing
Milling speed: 6000rpm、Y-Axis control
Through hole:φ61、 Bar work capacity: φ52
Travel：X:260 x Z:590 x Y:(+50,-50)
　　　　Sub-spindle(B-Axis): 624
・Tool pre-setter(both spindle)
・Work discharge device/ Work conveying device
・Misst collector　　・Chip-conveyor
・3m ALPS TOOL Bar feeder (ASR X-45/51PN2)
・Relocation detection device
詳細はこちら

CNC Lathe
SOLD OUT

Manufacturer OKUMA Model LB3000EX-C500【SOLD OUT】 Year 2007
Specification Control：OSP-P200L (Interactive)
Chuck: 8”Hollow (KitagawaBB208)、 NCTurret: V12
Swing over bed: φ580、 Distance between center：520
Max.turning dia. × length：φ410×500
Spindle speed: 5000rpm、　Spindle bore: φ80
Travel：ZX：565x260
・Tailstock　・Chip-conveyor
詳細はこちら

CNC Lathe
SOLD OUT

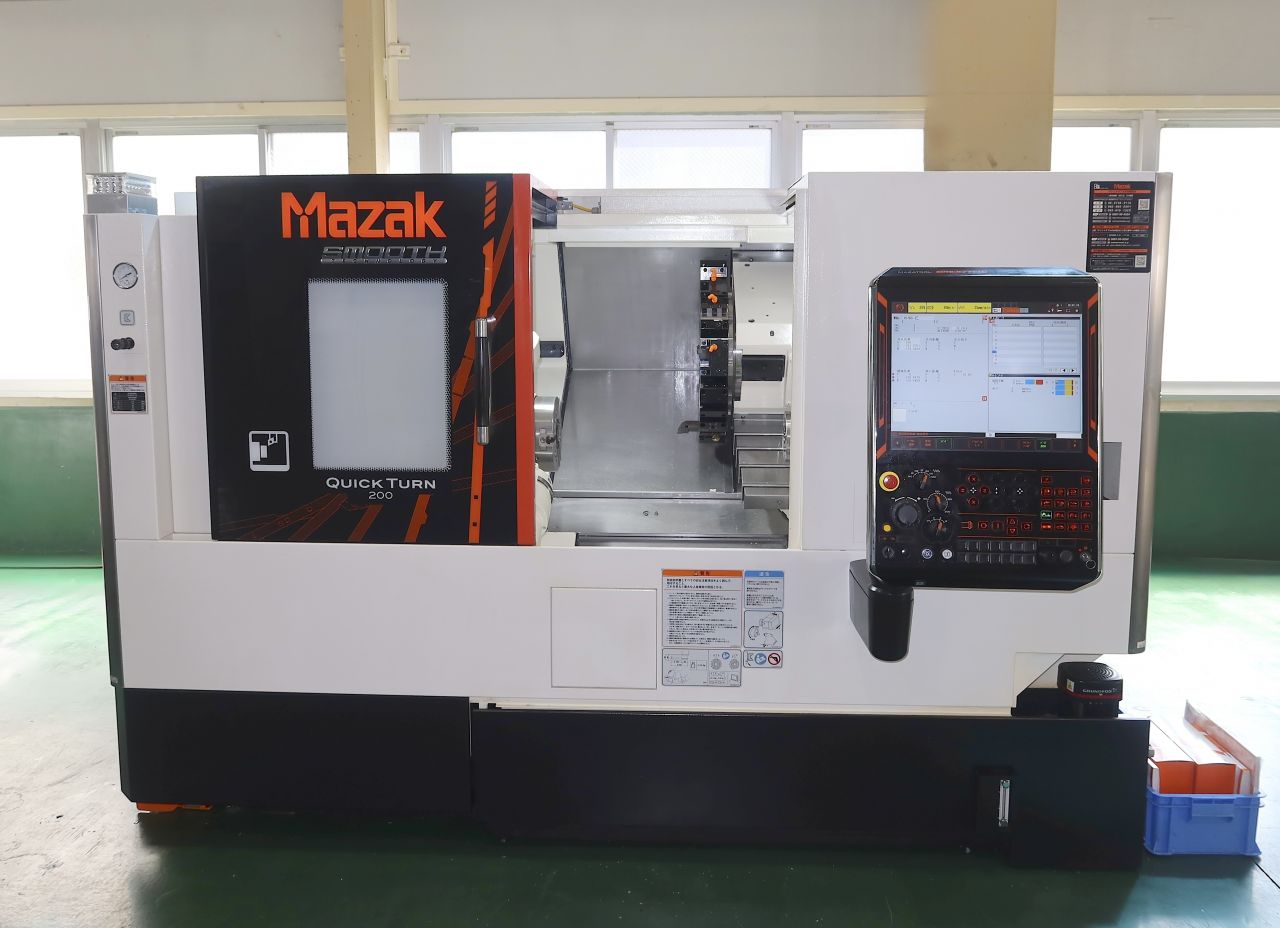

Manufacturer MAZAK Model QT-200【SOLD OUT】 Year 2018
Specification 《★ Turnning time：31H！！》
Control：MAZATROL smoothC
Chuck: 8”Hollow(Kitagawa B-208)、 NC turret: V12
Spindle speed: 5,000min
Spindle Through hole: φ76mm
Max.swing: φ660
Distance between center: 500
Max.Turnning Dia.xLength: φ350x540mm
Travel: XZ: 195x560
・Tailstock　・Tool Pre-setter
・Chip-conveyor
★Relocation detecting device
詳細はこちら

CNC Lathe
SOLD OUT

Manufacturer DMG MORI Model ecoTurn 450V1【SOLD OUT】 Year 2015
Specification 【Turning hours: 926 hours ONLYl! !】
Control：M-730BM (MAPPS Ⅳ)
Chuck: 10”Hollow (Kitagawa BB210A)、Turret: V12
Swing over bed: φ680
Distance between center：685
Max.Turning Dia.×Length：φ406×568
Spindle speed：4,000rpm、Spindle bore: : φ91
Travel：ZX：600x267
・Automatic tailstock ・Tool presetter(Manual)　
・Chip-conveyor
✴︎ Relocation detector
詳細はこちら

CNC Lathe
SOLD OUT

Manufacturer OKUMA Model LB3000EX-MC【SOLD OUT】 Year 2007
Specification Control：OSP-P200L (Interactive)
Chuck: 8”Hollow (KitagawaBB208)、 NCTurret: V12
Swing over bed: φ580、 Distance between center：520
Max.turning dia. × length：φ410×500
Spindle speed: 5000rpm、Spindle bore: φ80
Milling spindle: 6000rpm、 C-Axis: 0.001°
Travel：ZX：565x260
・Tailstock　・Tool setter
・Door interlocking
・Chip-conveyor
詳細はこちら

CNC Lathe
SOLD OUT

Manufacturer OKUMA Model LB3000EXⅡ-C500【SOLD OUT】 Year 2018
Specification 制御：OSP-P300LA
チャック: 8”中空 (北川B-208A)、NC刃物台: V12
ベッドの振り: φ580、 心間：520
最大加工径×長：φ410×500
主軸回転：5000rpm、　貫通穴: φ80
移動量：ZX：565x260
・心押台　　・タッチセッタM　
・ドアインターロック(タイプⅡ)
・チップコンベア付き
詳細はこちら

CNC Lathe
SOLD OUT

Manufacturer OKUMA Model LB300-M-C1000【SOLD OUT】 Year 2006
Specification Control：OSP-E100L (Interactive)
Chuck: 10”Hollow (Kitagawa B-210A)
NCTurret: V12
Swing over bed: φ340
Distance between center：1020
Max.turning Dia.× length：φ340×1000
Spindle speed: 4500rpm、Spindle bore: φ62
Travel：ZXC: 1020x260x360°(0.001°)
・Tailstock　・Chip-conveyor
