Vertical Machining Center

Manufacturer MORI SEIKI Model NV5000a1B/50 Year 2010
Specification Control: MSX-501Ⅲ(F-18iMB) (MAPPSⅢ)
Table: 1320×600,    Capacity: 1200kg
Spindle: 8,000rpm, BT50,  ATC30
Travel: XYZ: 1020×510×510
Distance from table top to spindle nose: : 150~660
・manual pulse generator
・Mist collector(Ryousei SV-523B)
・Chip-conveyor
詳細はこちら

CNC Lathe

Manufacturer DMG MORI Model NLX2500/700 Year 2014
Specification 《Machining Hour:1752Hr 》
Control:M730BM (MAPPS)
Chuck: 10”Hollow (Kitagawa B-210)、Turret: V10
Swing over bed: φ590
Distance between center: 700
Max. Turning Dia. ×Length:φ460×728
Spindle speed:3200rpm、 Spindle bore:φ91
Travel:ZX:795x260
Tailstock travel心:650
・Tool Pre-setter(Manual)
・Tail stock
・NO chip-conveyor
・GPS Relocation detecting device
詳細はこちら

CNC Lathe
SOLD

Manufacturer MAZAK Model QT-200(MY)-C500【SOLD】 Year 2019
Specification Control:MAZATROL smooTHC
Chuck: 8”Hollow(Kitagawa B-208)、Turret(VDI): V12
Max.Swing:φ695、 Distance between center: 500
Distance between Spindle end and Turret:710
Spindle speed: 5000rpm、 Spindle bore:φ76
C-Axis control:0.0001°Indexing、 Y-Axis control
Milling head speed:5000rpm
・Tool Pre-setter. ・Mill-axis synchronous Tapping
・NC Tailstock ・Chip-conveyor
・GPS Relocation detecting device
・With some VDI milling holders
詳細はこちら

Other Machining Center

Manufacturer FANUC Model a-D14MiA5 Year 2015
Specification Control: Fanuc-31i-MB5
Table: 650×400
Spindle: 10,000rpm, BT30,  ATC14
Travel: XYZ: 500×400×330
Distance from table surface to spindle end: 150~480
Distance between Table to Table end: 150~480
・Automatic tool length measuring(including breakage detection)(BLUM Z-Nano)
・Touch Probe (BLUM TC52)
詳細はこちら

CNC Lathe

Manufacturer OKUMA Model LB3000EXⅡ(M)C Year 2016
Specification Control:OSP-P300L (Interactive)
Chuck: 8”Hollow (Kitagawa B-208)、NCTurret: V12
Swing over bed: φ580、Distance between center : 520
Max.turning dia.× Lenth: φ340×500
Spindle speed:5000rpm、Spindle bore: φ80
Milling spindle speed:6000rpm、C-Axis: 0.001°
Travel:ZXC:565x260x360°
・NC Tailstock  ・Tool setter(M)
・Door interlocking
・Chip-conveyor&chip bucket
詳細はこちら

CNC Multi-tasking machine
RESERVED

Manufacturer MORI SEIKI Model NT4300DCG/1500SZ Year 2006
Specification Control:MSX-701Ⅲ(MAPPSⅢ)
Max.Workpiece Swing:φ730
Distance between Spindle Nose:1862
Max.Turning Dia.: Tool-spindle:φ660 / Turret:φ350
Max.Turning Dia.:1500
Travel(Tool-spindle Head):XYZB:750x ±210x1650x ±120
Travel(Turret):XZ:195x1525、(Turret:V10)
Travel(Spindle 2) : 1610
Spindle1/Spindle2: 12in Hollow、3000rpm, C-Axis:0.0001°Indexing
Tool-Spindle: 12,000rpm, B-Axis:0.0001°Indexing、Capto C6, ATC100
・B-Axis Scale feedback
・Tool-Spindle Through-spindle coolant(3.5Mpa.)
・ In-machine measurement device (Tool-spindle/RenishawMP700)
・In-machine Tool presetter(Manual)/(Spindle1/Spindle2)
・Mist collector
・Chip-conveyor(Hinge + scraper + drum filter)
・Many tooling included
詳細はこちら

CNC Lathe

Manufacturer OKUMA Model LB4000EXⅡ(MY)-C1500 Year 2022
Specification 《 Hours of operation: 400hrs.》
Control:OSP-P300LA (Interactive)
Chuck: 15”Hollow(Kitagawa B-215A)、NC Turret:V12
Swing over bed:φ670
Distance between center:1520
Max.Turning Dia.×Length:φ430×1500
Spindle speed:3000min、 Spindle bore: φ112
Milling spindle speed: 6000min
Travel:XZYC: 300x1590x140(±70)x360°(0.001°)
Travel of Tailstock:1530
・Tailstock sleeve extension:80
・Tool pre-setter(Manual)
・Touch sensor(Renishaw RLP40)
・Absolute scale (X+Z+Ys axis)
・Mist collector can be installed
・Steady rest(φ20-150)
・Chip-conveyor
・Some milling&cutting holders are included (see photo)
詳細はこちら

Vertical Machining Center

Manufacturer YAMASAKI Model YZ-502NC Year 2007
Specification Control: Fanuc-0iMB
Table: 1600×500
Spindle: 8,500rpm, BT40,  ATC24
Travel: XYZ: 1250×500×550
Distance from table surface to spindle end: 700~150
・X-axis long stroke(Standard1050+200)
・Partition type cutting fluid tank(180L)
・ADD 1-axis(CIC Tilting Rotary table/ Nikken 5AX-200DA21FA)
・Expanded number of control axes: 4th axis
・Ai contour control
詳細はこちら

Horizontal Machining Center

Manufacturer MAZAK Model FH-5800 Year 1999
Specification Control: MAZATROL FUSION 640M
Table: 500×2APC, Indexing: 1°
Loading capacity: 500kg
Spindle speed: 12,000rpm,  BT40,  ATC40
Travel:XYZ: 710×610×660
Distance from table surface to spindle end:50-660
・Through-spindle coolant (15kgf)
・Automatic tool length measuring & tool breakage detection
・Touch sensor(Renishaw OMP60)
・Option package for Die & Mold Specifications
・Chip-conveyor&chip-bucket
・630x630x2 pallet included
詳細はこちら

Horizontal Machining Center

Manufacturer MORI SEIKI Model NH4000DCG Year 2010
Specification Control: MSX-701Ⅳ(F-31iA) (MAPPS 4)
Table: 400×2APC,  B-Axis: 0.001°
Capacity: 400kg
Spindle: 14,000rpm, BT40, ATC60
Travel:XYZ: 560×560×630
Distance from pallet surface to spindle centerline:80-640
・Through-spindle coolant(7.0MPa)
・Linear scale (X.Y.Z.B)(full closed-loop control) made by Magnescale
・manual measurement (tool and work piece setter)
・Touch sensor(Spindle)/ Renishaw OPM60
・Touch sensor(Table)/Metrol
・Chip-conveyor& bucket
✴︎ Relocation detection device
詳細はこちら

Double Column Machining Center

Manufacturer MORI SEIKI Model VS8000/50/1600 Year 2008
Specification Control: MSX-501Ⅲ(F-18iMB) (MAPPSⅢ)
Table: 2000×850, Capacity: 2000kg
Spindle: 8,000rpm, BT50,  ATC30
Travel: XYZ: 1600×860×600
Distance from table to spindle end: 200〜800
・Through-spindle coolant(1.5MPa)
・W-Setter(manual tool and work piece measurement)
・Chip-conveyor
✴︎ Relocation detection device
詳細はこちら

Vertical Machining Center

Manufacturer OKUMA Model MB-66VB Year 2019
Specification Control: OSP-P300MA
Table: 660×1,530
Spindle: 6,000rpm, BT50,  ATC32
Travel: XYZ: 1,500×660×660
Distance from table top to spindle nose: 150〜810
・Through-spindle coolant(1.5Mpa)
・Tool breakage detection
・Automatic tool length compensation
・Chip-conveyor
詳細はこちら

CNC Lathe

Manufacturer OKUMA Model LB4000EXⅡ(M)-C2000 Year 2014
Specification Control:OSP-P300L(Interactive)
Chuck: 10”Hollow (Kitagawa BB-210A)、 NC Turret: V12
Swing over bed: φ670
Distance between center:2170
Max.Turning Dia.×Length:φ430×2150
Spindle speed:4200rpm、Spindle bore: φ91
Milling speed: 6000rpm、
Travel:ZXC: 2240x300x360°(Indexing:0.001°)
Travel of Tail stock:2180
・NC Tail stock ・Tool pre-setter(Manual)
・Hydraulic steady rest
・Chip-conveyor
・Some milling holders are included (see photo)
詳細はこちら

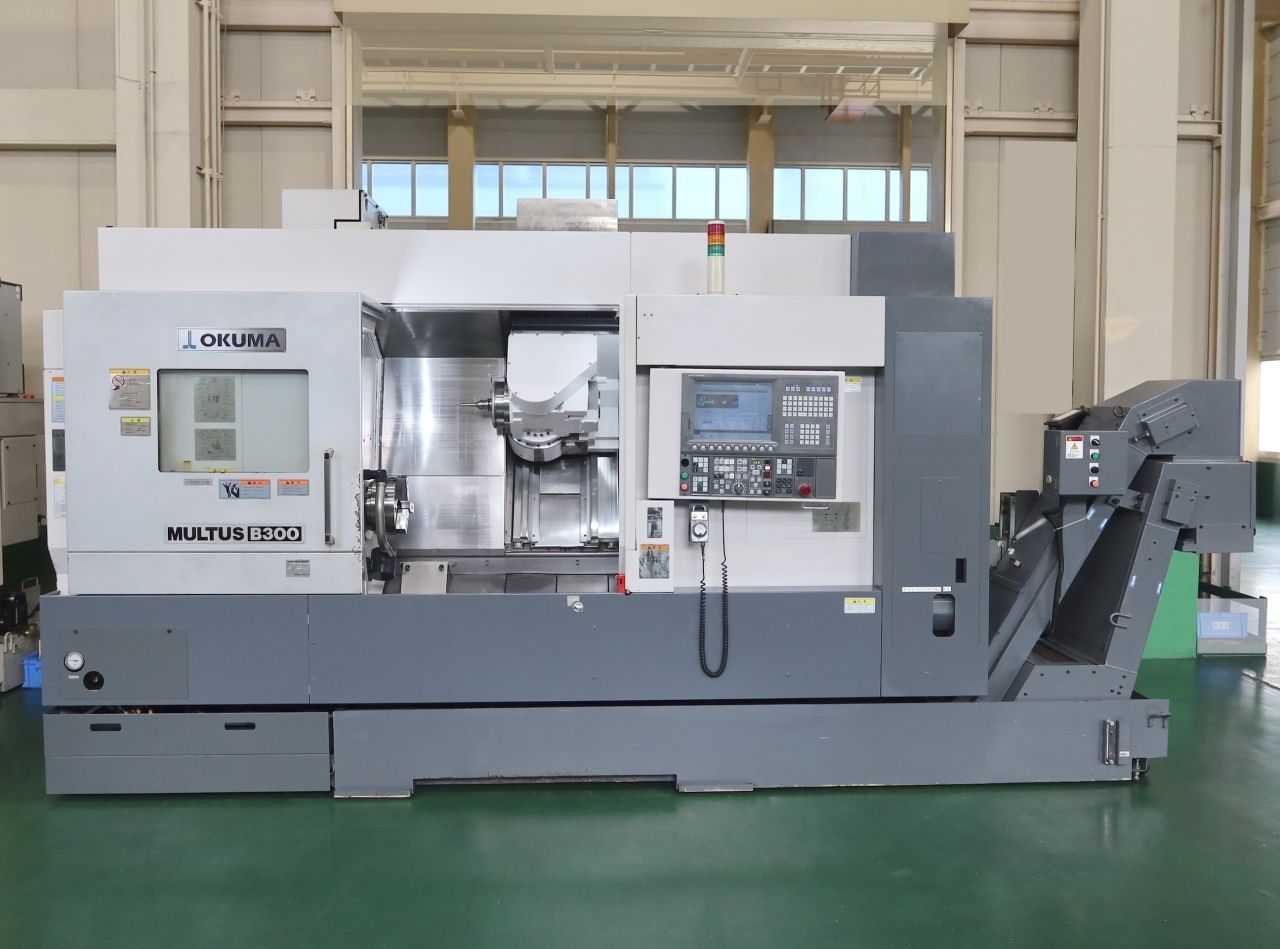

CNC Multi-tasking machine

Manufacturer OKUMA Model MULTUS B300 Year 2006
Specification Control:OSP-P200L(Interactive)
Chuck: 10” Hollow (Kitagawa B-210A6)

Main spindle: 4200rpm

Max.Maching Dia.×Length:φ630×900

Travel:ZXYCB:930x580x160x360° x210°
W-Axis(Tail stock):667

Milling spindle: 6,000rpm、 HSK-A63、 ATC40

B-Axis: 0.001°Indexing、C-Axis: 0.001°

・M-spindle through coolant

・NC tail stock ・Tool setter
・Steady rest(φ20-150)
・Chip-conveyor
詳細はこちら

CNC Multi-tasking machine

Manufacturer OKUMA Model MULTUS B300 Year 2006
Specification Control:OSP-P200L(No Interactive)
Chuck: 12” Hollow (Kitagawa BB212)

Main spindle: 3500rpm

Max.Maching Dia.×Length:φ630×900

Travel:ZXYCB:930x580x160x360° x210°
W-Axis(tail stock):667

Milling spindle: 6,000rpm、 HSK-A63、 ATC40

B-Axis: 0.001°Indexing、 C-Axis: 0.001°

・M-spindle through coolant
 ・NC tail stock
・Tool setter ・Chip-conveyor
