Horizontal Machining Center
SOLD OUTManufacturer MAZAK Model FH-5800【SOLD OUT】 Year 1999 Specification Control: MAZATROL FUSION 640M
Table: 500×2APC, Indexing: 1°
Loading capacity: 500kg
Spindle speed: 12,000rpm, BT40, ATC40
Travel:XYZ: 710×610×660
Distance from table surface to spindle end：50-660
・Through-spindle coolant (15kgf)
・Automatic tool length measuring & tool breakage detection
・Touch sensor(Renishaw OMP60)
・Option package for Die & Mold Specifications
・Chip-conveyor&chip-bucket
・630x630x2 pallet included
Vertical Machining Center
SOLD OUTManufacturer OKUMA Model MILLAC 561VⅡ【SOLD OUT】 Year 2020 Specification 《Cutting time: 1869 h》
Control: OSP-P300MA (Advanced One-Touch IGF)
Table:1350×560, Capacity:1000kg
Spindle: 6,000rpm, BT50, ATC30
Travels: XYZ: 1050×560×520
Distance from table top to spindle nose: 170～690
・Tool breakage detection
・Automatic tool length compensation
・Automatic origin correction & measurement(Renishaw OMP60)
・Chip-conveyor& bucket
Double Column Machining Center
SOLD OUTManufacturer MORI SEIKI Model VS8000/50/1600【SOLD OUT】 Year 2008 Specification Control: MSX-501Ⅲ(F-18iMB) (MAPPSⅢ)
Table: 2000×850, Capacity: 2000kg
Spindle: 8,000rpm, BT50, ATC30
Travel: XYZ: 1600×860×600
Distance from table to spindle end: 200〜800
・Through-spindle coolant(1.5MPa)
・W-Setter(manual tool and work piece measurement)
・Chip-conveyor
✴︎ Relocation detection device
CNC Lathe
SOLD OUTManufacturer OKUMA Model LB3000EX(M)C【SOLD OUT】 Year 2008 Specification Control: OSP-P200L (One-Touch IGF)
Chuck: 8”Hollow (Kitagawa B-208A6)、NCTurret: V12
Swing over bed: φ580、Distance between center : 520
Max.turning dia.× Length: φ340×500
Spindle speed：5000rpm、Spindle bore: φ80
Milling spindle speed：6000rpm、C-Axis: 0.001°
Travel：ZXC：565x260x360°
Tailstock travel: 515
・NC Tailstock ・Tool setter(M)
・Door interlocking
Double Column Machining Center
SOLD OUTManufacturer MAZAK Model FJV-35/80【SOLD OUT】 Year 2019 Specification 《Automatic cutting time: 2084 h》
Control: MAZATROL SmoothG
Distance between column: 860
Table: 750×3240, Loading weight: 3000kg
Spindle: 10,000rpm, BT50, ATC30
Travel: XYZW: 2000×800×660
Distance from pallet top to spindle center: 160～820
・Through spindle coolant (15kgf)
・Automatic tool length measuring(including breakage detection)
・Mazak Monitoring System B (Renishaw OMP60)
・Linear scare Feedback (X・Y-axis)
・synchronous tapping
・Relocation detecting device
Vertical Machining Center
SOLD OUTManufacturer FANUC Model a-D14MiA5【SOLD OUT】 Year 2015 Specification Control: Fanuc-31i-MB5
Table: 650×400
Spindle: 10,000rpm, BT30, ATC14
Travel: XYZ: 500×400×330
Distance from table surface to spindle end: 150～480
Distance between Table to Table end: 150～480
・Automatic tool length measuring(including breakage detection)(BLUM Z-Nano)
・Touch Probe (BLUM TC52)
CNC Multi-tasking machine
SOLD OUTManufacturer MORI SEIKI Model NT4300DCG/1500SZ【SOLD OUT】 Year 2006 Specification Control：MSX-701Ⅲ(MAPPSⅢ)
Max.Workpiece Swing:φ730
Distance between Spindle Nose:1862
Max.Turning Dia.: Tool-spindle:φ660 / Turret:φ350
Max.Turning Dia.：1500
Travel(Tool-spindle Head):XYZB：750x ±210x1650x ±120
Travel(Turret)：XZ:195x1525、(Turret:V10)
Travel(Spindle 2) : 1610
Spindle1/Spindle2: 12in Hollow、3000rpm, C-Axis:0.0001°Indexing
Tool-Spindle: 12,000rpm, B-Axis:0.0001°Indexing、Capto C6, ATC100
・B-Axis Scale feedback
・Tool-Spindle Through-spindle coolant(3.5Mpa.)
・ In-machine measurement device (Tool-spindle/RenishawMP700)
・In-machine Tool presetter(Manual)/(Spindle1/Spindle2)
・Mist collector
・Chip-conveyor(Hinge + scraper + drum filter)
・Many tooling included
Vertical Machining Center
SOLD OUTManufacturer YAMASAKI Model YZ-502NC【SOLD OUT】 Year 2007 Specification Control: Fanuc-0iMB
Table: 1600×500
Spindle: 8,500rpm, BT40, ATC24
Travel: XYZ: 1250×500×550
Distance from table surface to spindle end: 700～150
・X-axis long stroke(Standard1050+200)
・Partition type cutting fluid tank(180L)
・ADD 1-axis(CIC Tilting Rotary table/ Nikken 5AX-200DA21FA)
・Expanded number of control axes: 4th axis
・Ai contour control

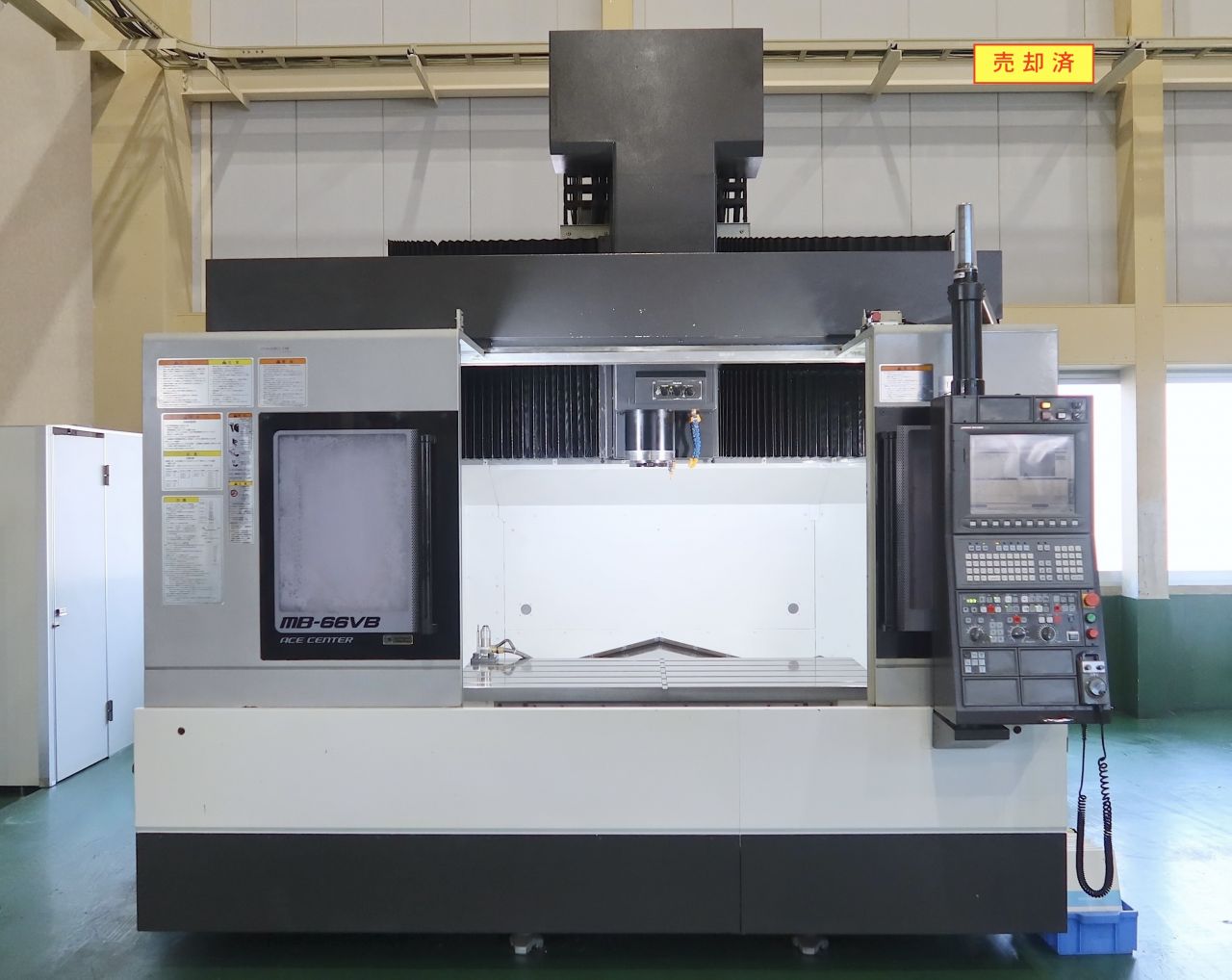

Vertical Machining Center
SOLD OUTManufacturer OKUMA Model MB-66VB【SOLD OUT】 Year 2019 Specification Control: OSP-P300MA (Interactive MAP)
Table: 660×1,530
Spindle: 6,000rpm, BT50, ATC32
Travel: XYZ: 1,500×660×660
Distance from table top to spindle nose: 150〜810
・Through-spindle coolant(1.5Mpa)
・Tool breakage detection
・Automatic tool length compensation
・Chip-conveyor
CNC Lathe
SOLD OUTManufacturer OKUMA Model LB4000EXⅡ(MY)-C1500【SOLD OUT】 Year 2022 Specification 《 Hours of operation: 400hrs.》
Control：OSP-P300LA (One-Touch IGF)
Chuck: 15”Hollow(Kitagawa B-215A)、NC Turret:V12
Swing over bed:φ670
Distance between center：1520
Max.Turning Dia.×Length：φ430×1500
Spindle speed：3000min、 Spindle bore: φ112
Milling spindle speed: 6000min
Travel:XZYC: 300x1590x140(±70)x360°(0.001°)
Travel of Tailstock：1530
・Tailstock sleeve extension：80
・Tool pre-setter(Manual)
・Touch sensor(Renishaw RLP40)
・Absolute scale (X+Z+Ys axis)
・Mist collector can be installed
・Steady rest(φ20-150)
・Chip-conveyor
・Some milling&cutting holders are included (see photo)
CNC Lathe
SOLD OUTManufacturer OKUMA Model LB3000EXⅡ C500【SOLD OUT】 Year 2022 Specification 《 Hours of operation: Only 5Hours！！》
Control：OSP-P300LA (One-Touch IGF)
Chuck: 8”Hollow (Kitagawa B-208)、 NCTurret: V12
Swing over bed: φ580
Distance between center：520
Max.turning dia.×length：φ410×500
Spindle speed: 5000rpm、 Spindle bore: φ80
Travel：ZX：565x260
・NC Tailstock ・Tool pre-setter
・Chip-conveyor
CNC Vetical lathe(Turnning)
SOLD OUTManufacturer OKUMA Model VTR-350A【SOLD OUT】 Year 2010 Specification Okuma VTR-350A, Year2010
Control：OSP-P200L(One-Touch IGF)
Table：φ3200(8-Jaw single action chuck)，160rpm, C-Axis:0.001°
Max.Swing：φ3,500、 Work loading: 20,000kg
Max.machining dia.：φ3,500
xMax. work length(height): 2000(standard1600+400)
Milling spindle：3,000rpm, BT50, ATC24 (Turning:11, Milling:12, Protect holder:1)
Travels：XZ：2100×1250 , Cross rail travel: 900
・High column spec.(column up 400mm)
・Milling-spindle Through-spindle coolant(1.5Mpa)
・In-machine workpiece measurement(Renishaw RMP60)
・Absolute scale(X, Z-Axis)
・Automatic tool pre-setter
・Chip-conveyor
・Turning holderx7unit+Protection holderx1unit
CNC Lathe
SOLD OUTManufacturer OKUMA Model LB35Ⅲ C850【SOLD OUT】 Year 2020 Specification Control:OSP-P300LA (Advanced One-Touch IGF)
Chuck:12” (6-jaw scroll chuck)
Kobayashi TC310F6/ :1050min
NC Turret: V12 (bolt clamp)
Swing over bed: φ700
Distance between center：920
Max.turnning Dia.×Length：φ460×850
Big-Bore spindle(2A-11)speed：2800min
Main spindlebore: φ110
Travel: ZX：920x330
・Tool pre-setter ・Tailstock
・Mist collector
・Chip-conveyor
CNC Lathe
SOLD OUTManufacturer OKUMA Model LB300-M-C1000【SOLD OUT】 Year 2006 Specification Control：OSP-E100L (One-Touch IGF)
Chuck: 10”Hollow (Kitagawa B-210A)
NCTurret: V12
Swing over bed: φ340
Distance between center：1020
Max.turning Dia.× length：φ340×1000
Spindle speed: 4500rpm、Spindle bore: φ62
Travel：ZXC: 1020x260x360°(0.001°)
・Tailstock ・Chip-conveyor
CNC Vetical lathe(Turnning)
SOLD OUTManufacturer OKUMA Model V100R【SOLD OUT】 Year 2012 Specification Control：OSP-P200L(One-Touch IGF）
Hydraulic Chuck：φ1000 (Kitagawa)、
Max.swing: φ1250
Max turning Dia. ×Length: φ1,000x890
Travel：XZ：565×890, Turret：V12
Spindle Speed：1,250rpm
・Workpiece set up&inspection system(Renishaw MI５/hard-wired)
・Absolute positioning detection(XA)
・Door interlock&Automatic
・Chip-conveyor
・Other φ1000/4-jaw single-acting chuck included
(Kawata TEC 1000-ST-B)
・Many cutting holes included
