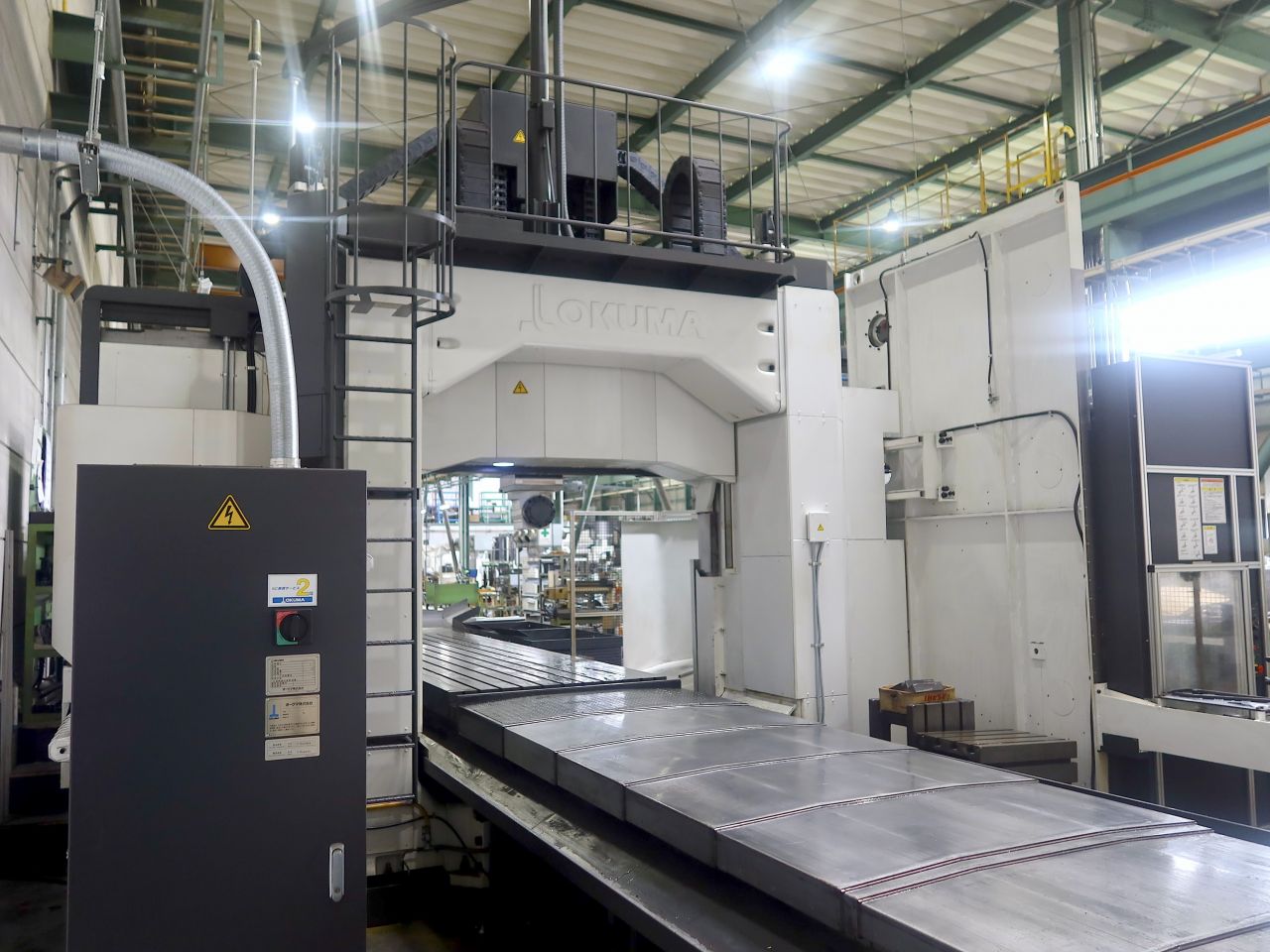

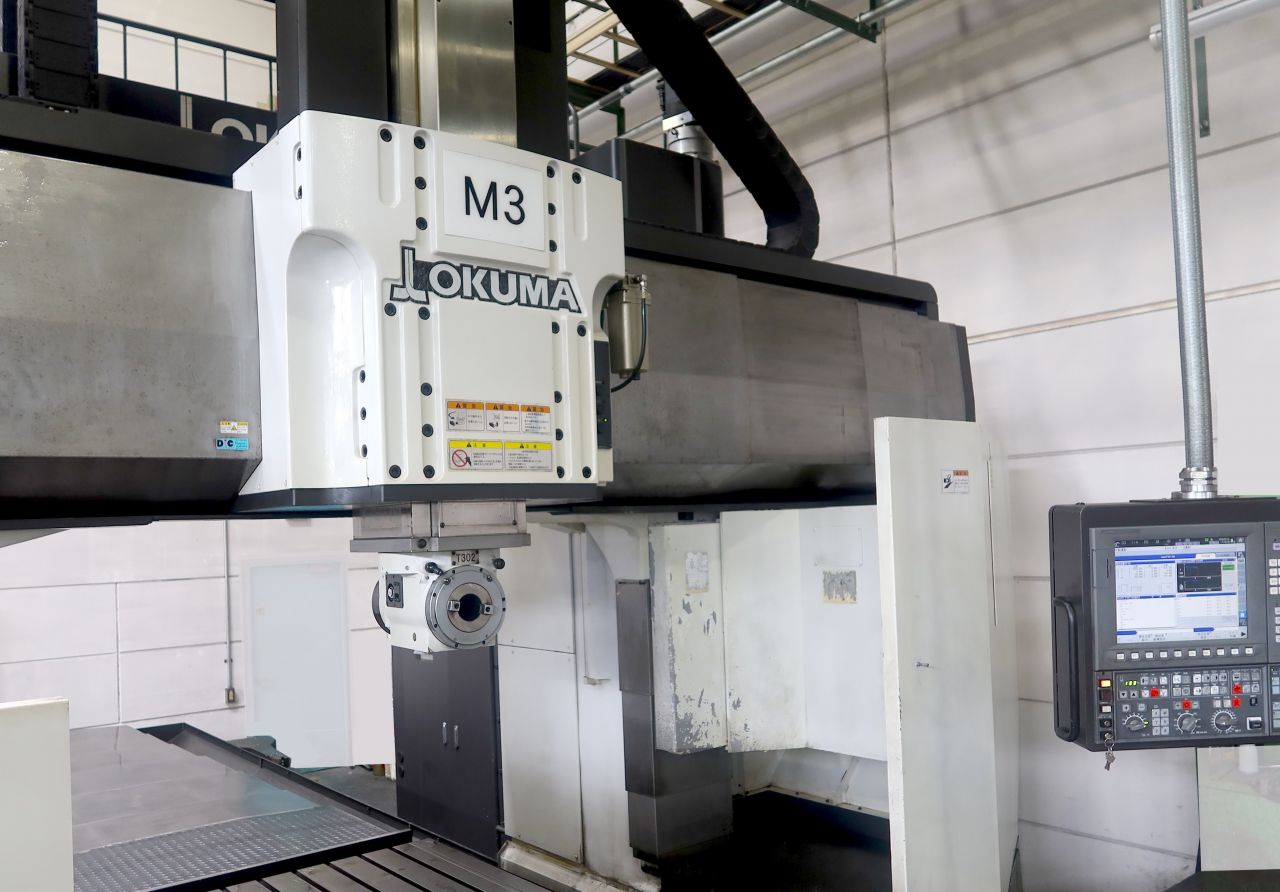

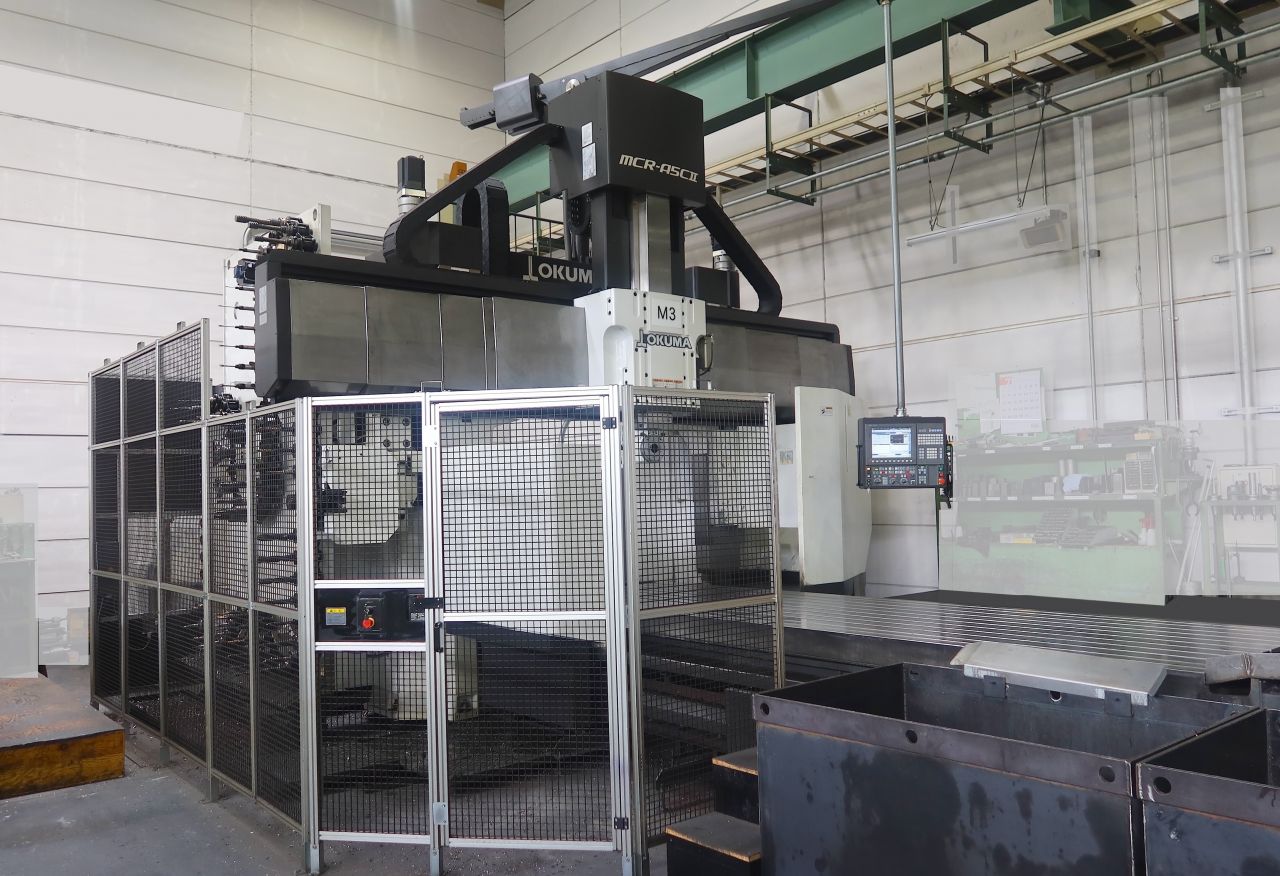

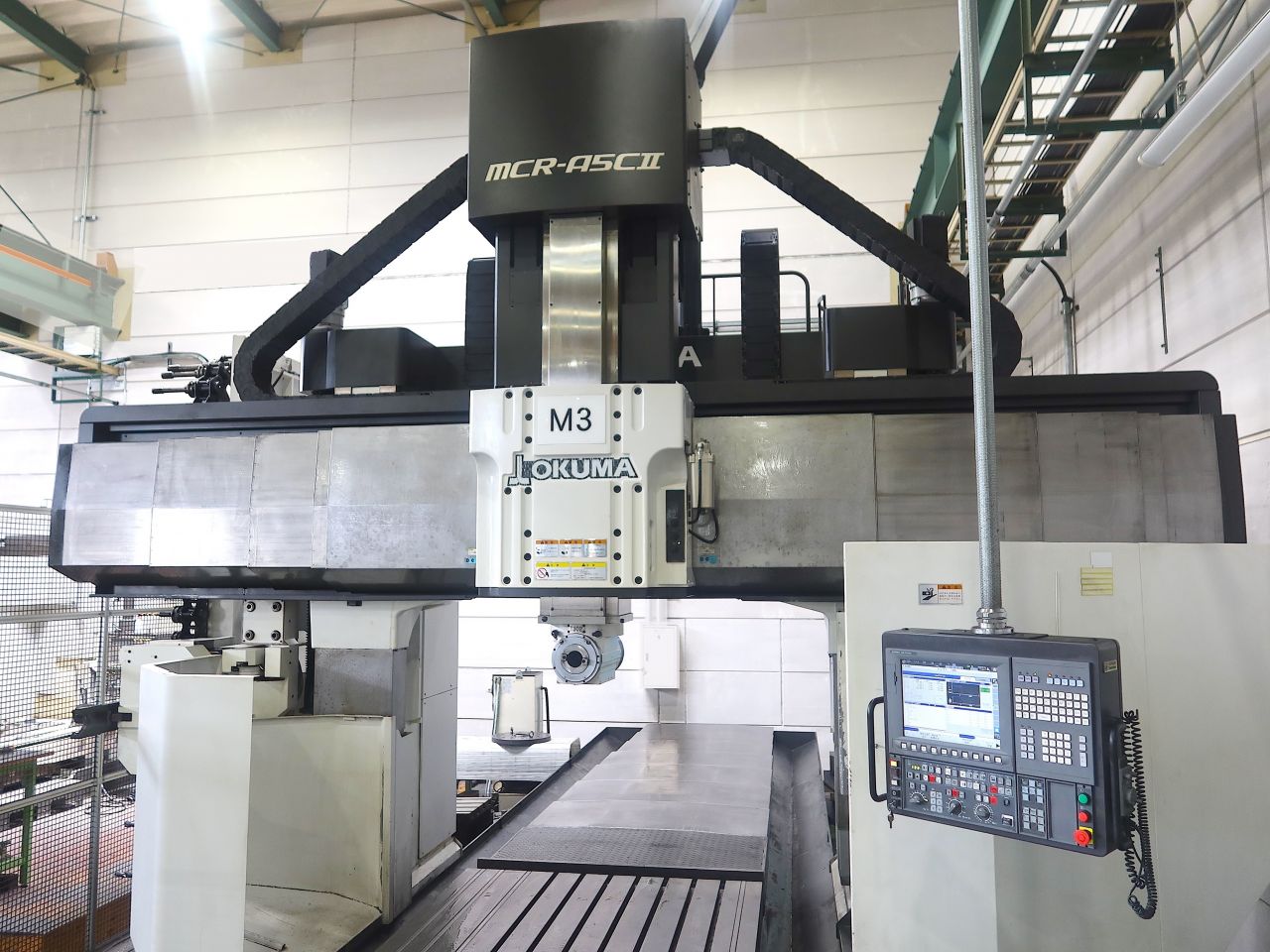

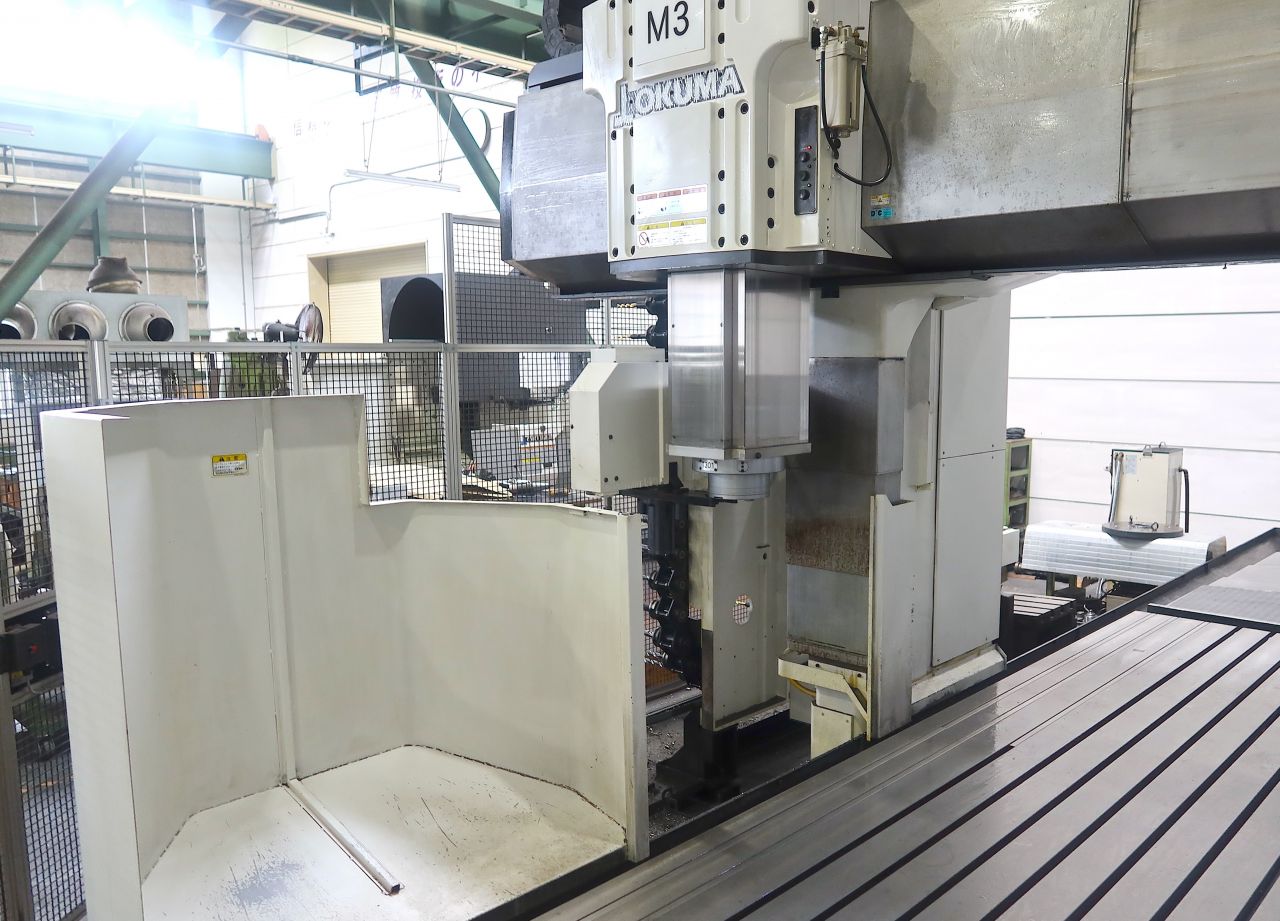

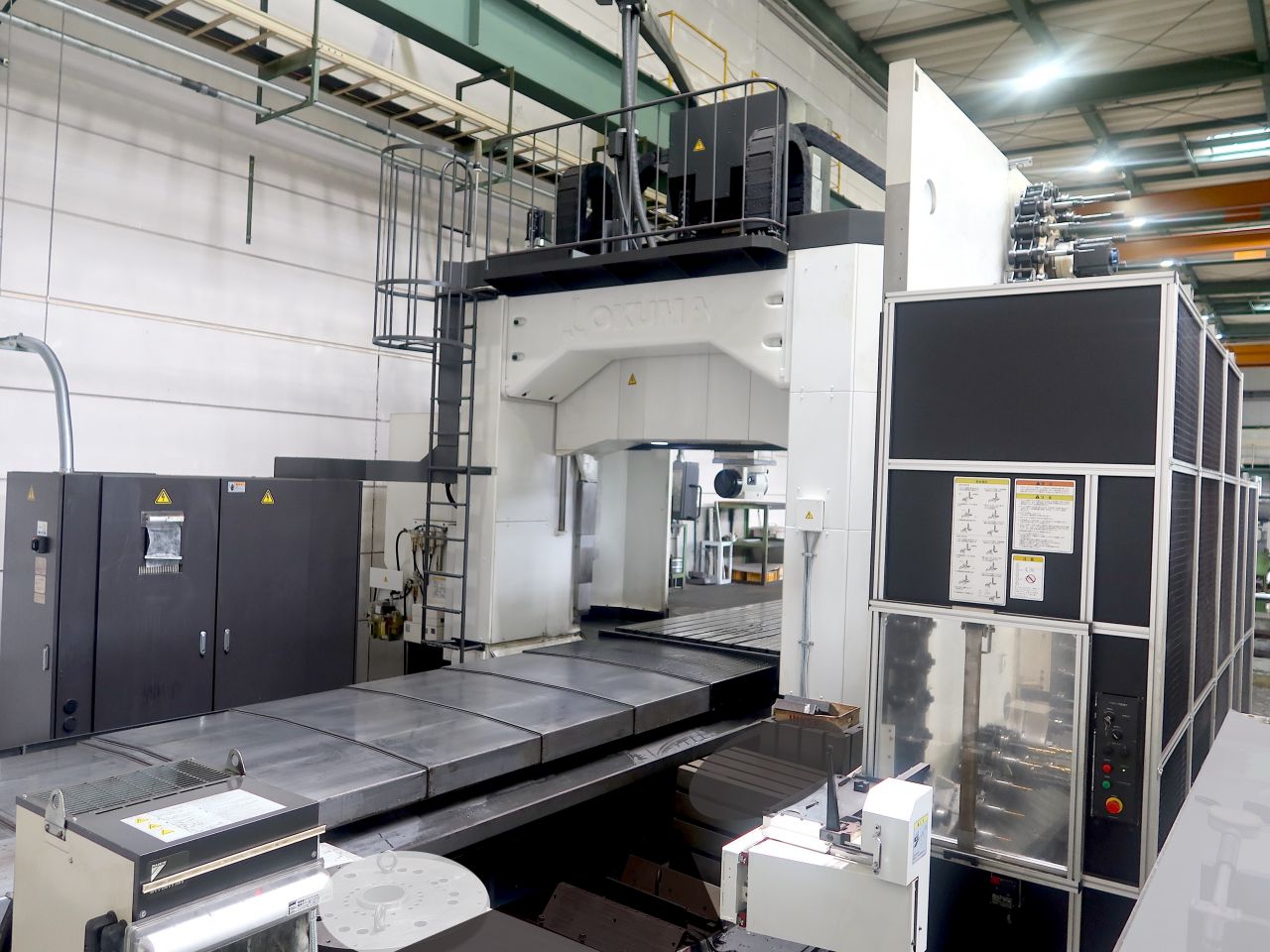

5-Face Double Column Machine Center / OKUMA / MCR-A5CⅡ(20x50)

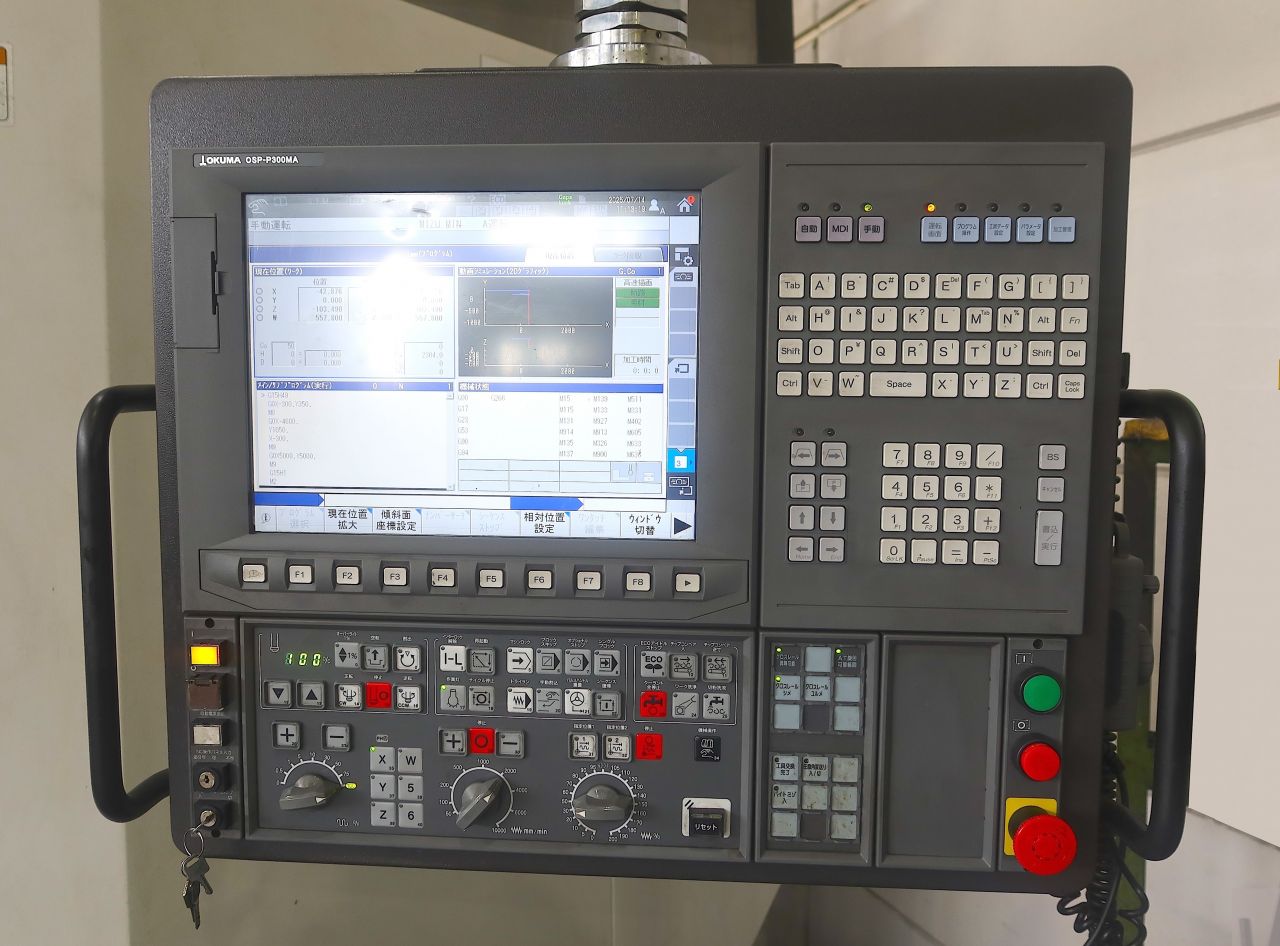

Manufacturer OKUMA Model MCR-A5CⅡ(20x50) Year 2017 Specification Control: OSP-P300MA
Effective width between columns: 2150

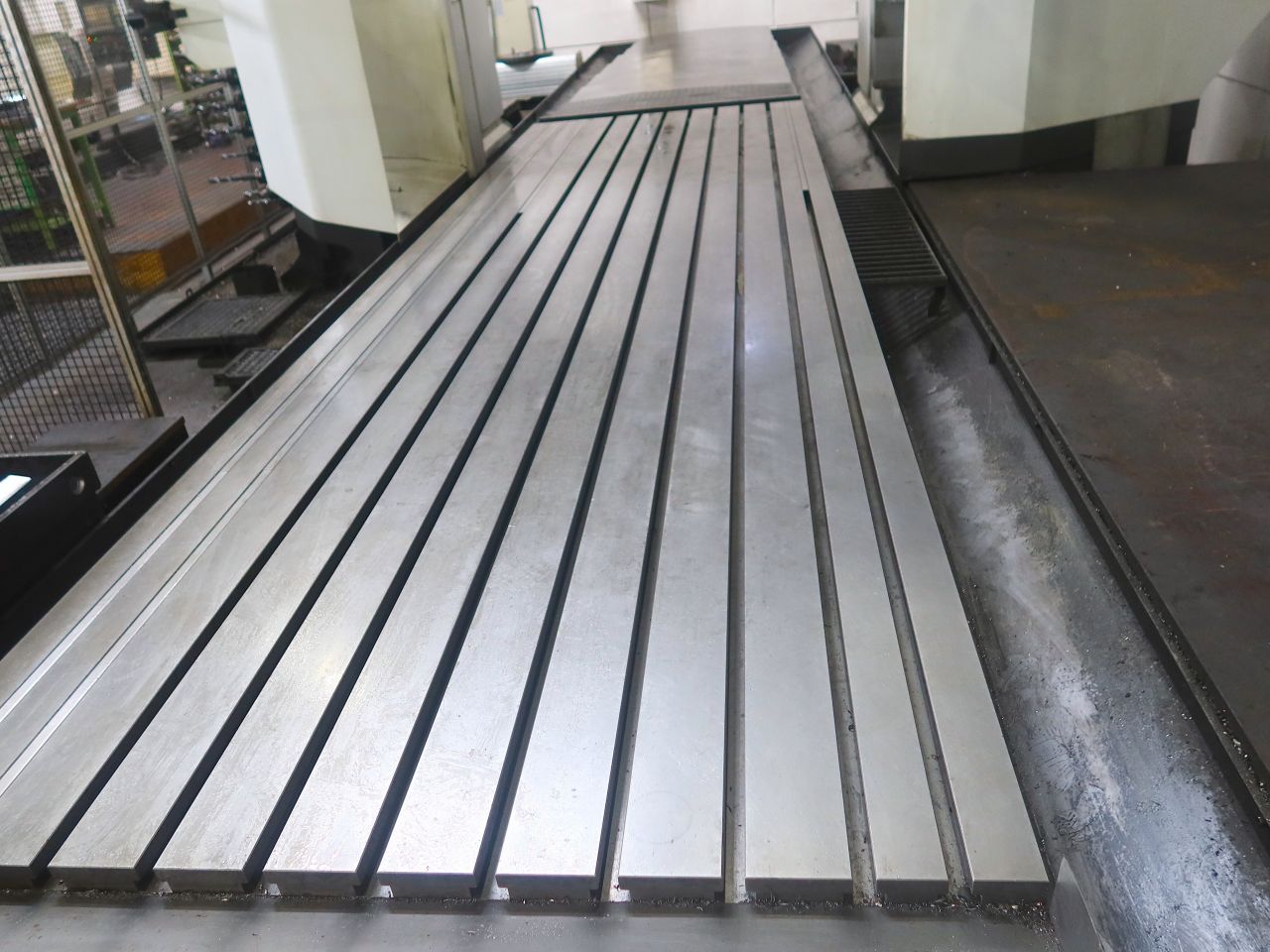

Table: 1500×5400, Maximum load: 20t
Spindle: 6,000rpm, BT50, ATC80
Travel:XYZW: 5,200×2,600×800x800
Table to spindle nose: 0~1450

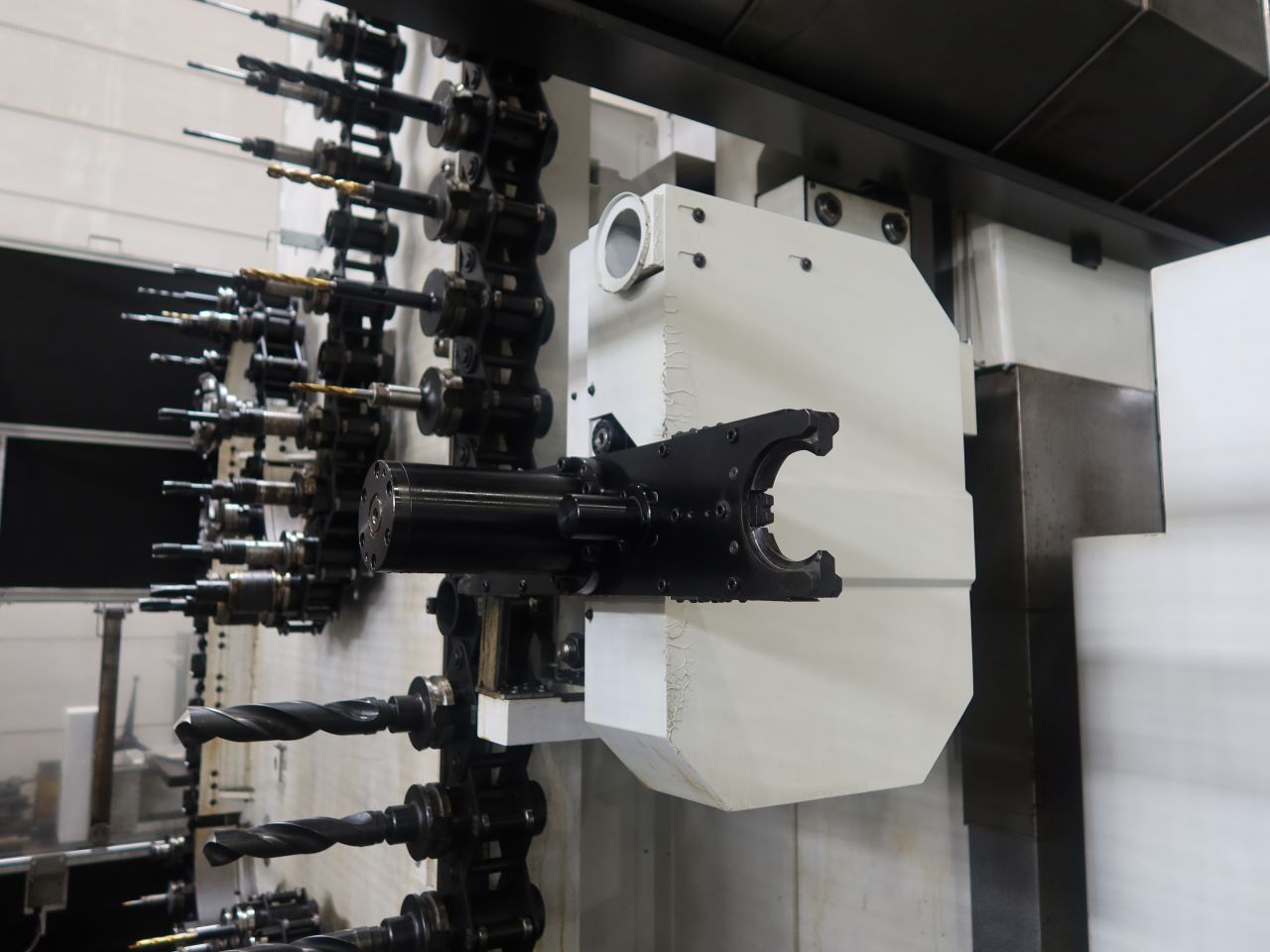

・AAC Device:2-Stations

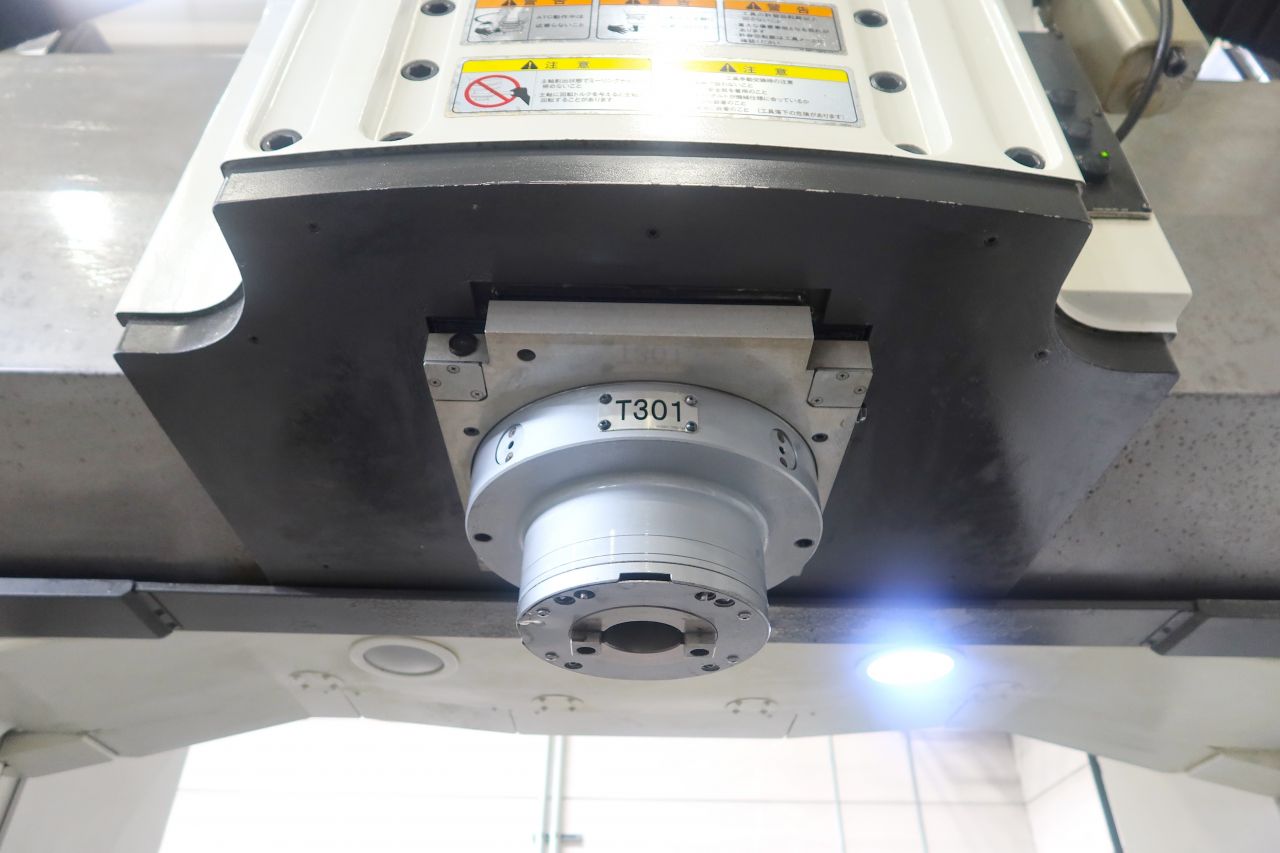

・Extension head: 6000rpm / L150

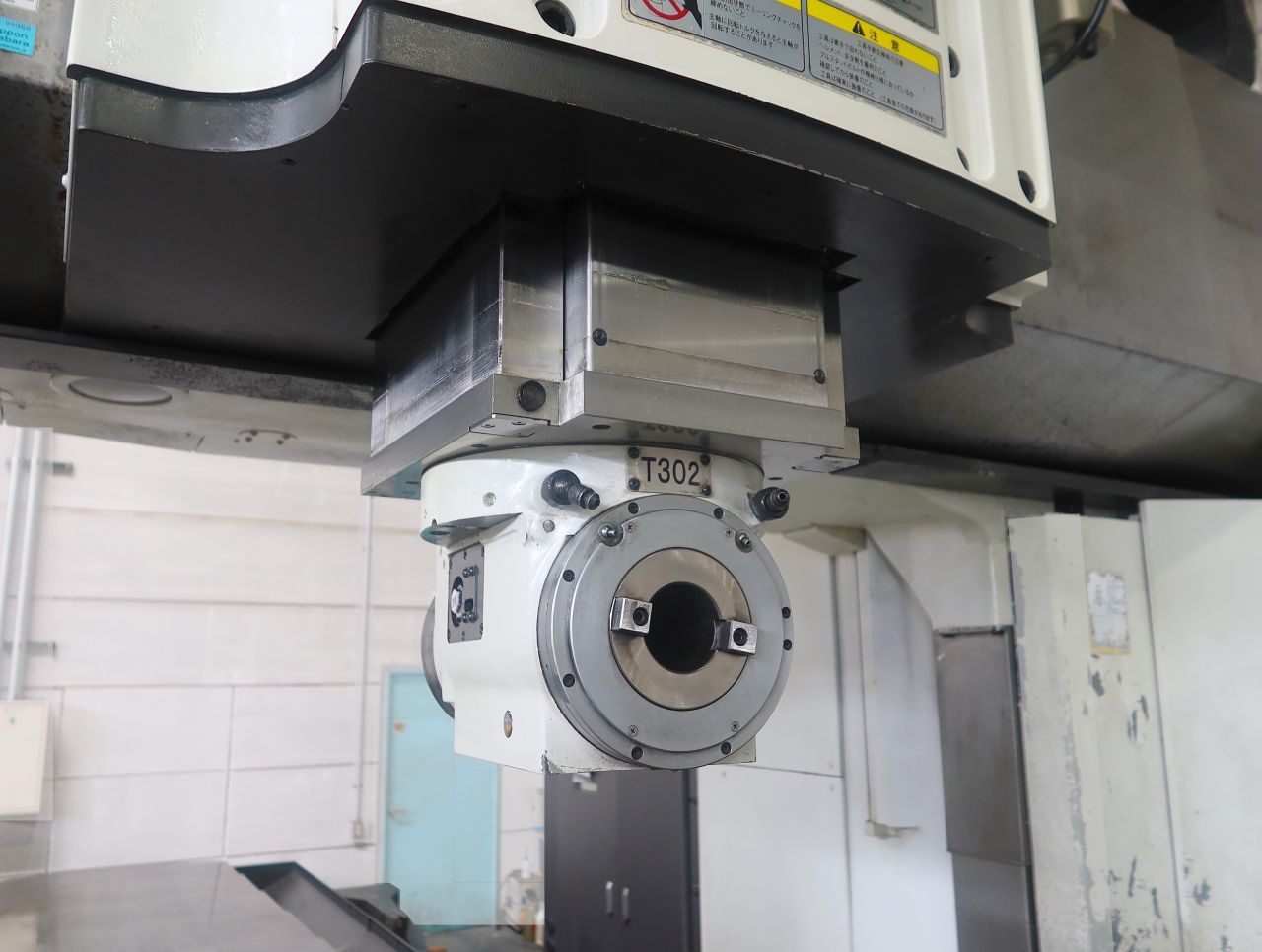

・90°angular head: 3000rpm / 5°indexing
・AbsoScale detection: W-axis
・Door Interlock:Type ⅡInquiry about this machine
